Detalhes do Produto

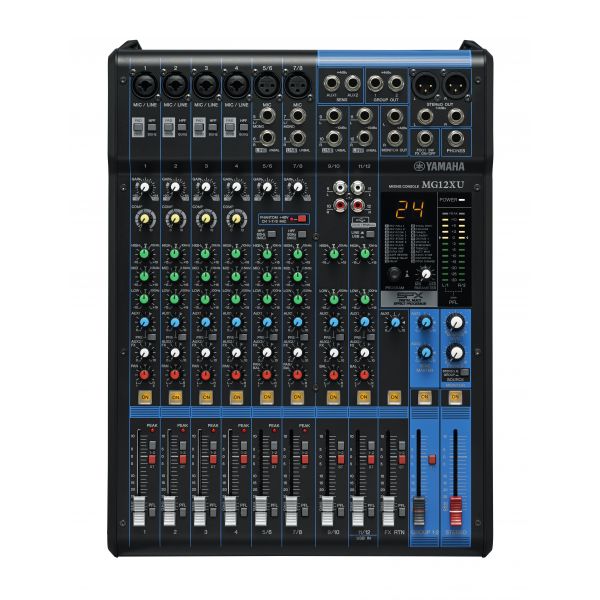

Mesa de mistura de 12 canais: Max. Entradas 6 Mic / 12 Line (4 mono 4 stereo) / 2 GROUP Buses 1 Stereo Bus / 2 AUX (incl. FX)Mesa de mistura de 12 canaisMax. Entradas 6 Mic / 12 Line (4 mono 4 stereo)2 GROUP Buses 1 Stereo Bus2 AUX (incl. FX)Pré-amplificadores de microfone “D-PRE” com o circuito Darlington invertidoEfeitos de alta qualidade: SPX com 24 programasPotenciometro para o compressorFunções Audio via USB 24-bit / 192kHz 2in / 2outTrabalha com iPad (2 or mais recente) através do Kit Apple iPad Camera Connection Kit / Lightning to USB Camera AdapterInclui Cubase AI DAW software download versionBotão PAD mono nas entradas mono 48V phantom powerXLR saídas balanceadasFonte de Alimentação universal interna para ser utilizada em qualquer parte do mundoKit de montage para Rack opcionalChassis de metalDimensões (W×H×D): 308 mm x 118 mm x 422 mm (9.6 x 2.8 x 11.6 )Peso: 4.2 kg (9.3 lbs.)EspecificaçõesOutlineMixing capabilityOn-board processorsSPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)I/OPhantom power 48 VDigital I/OUSB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bitInput ChannelsMono[MIC/LINE]4Mono/Stereo[MIC/LINE]2Stereo[LINE]2Output ChannelsSTEREO OUT2MONITOR OUT1PHONES1AUX SEND2GROUP OUT2BusStereo: 1, GROUP: 2, AUX: 2 (incl. FX)Input Channel FunctionPAD26 dB (Mono)HPF80 Hz, 12 dB/oct (Mono/Stereo: MIC only)COMP1-knob compressor (Gain/Threshold/Ratio) Threshold: 22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msecEQ HIGHGain: 15 dB/-15 dB, Frequency: 10 kHz shelvingEQ MIDGain: 15 dB/-15 dB, Frequency: 2.5 kHz peakingEQ LOWGain: 15 dB/-15 dB, Frequency: 100 Hz shelvingPEAK LEDLED turns on when post EQ signal reaches 3 dB below clippingLevel Meter2x12 -segment LED meter [PEAK, 10, 6, 3, 0, -3, -6, -10, -15, -20, -25, -30 dB]General specificationsTotal harmonic distortion0.03 % @ 14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ 24dBu (1kHz), GAIN knob: MinFrequency response 0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: MinHum noise levelEquivalent input noise-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)Residual output noise-102 dBu (STEREO OUT, STEREO master fader: Min)Crosstalk-78 dBPower requirementsAC 100 – 240 V, 50 / 60 HzPower consumption22 WDimensionsW308 mm (9.6 )H118 mm (2.8 )D422 mm (11.6 )Net weight4.2 kg (9.3 lbs.)AccessoriesIncluded Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5OthersOperating Temperature: 0 to 40˚C
