Detalhes do Produto

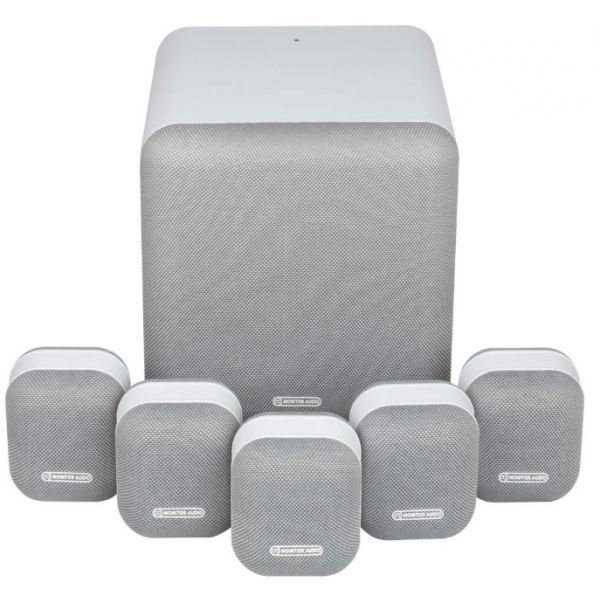

5 Unidades de MASS SATELITE
System Format 2-Way
Frequency Response (-6 dB) 105 - 34,000 Hz
Sensitivity (1W@1M) 80 dB
Nominal Impedance 8 ohms
Minimum Impedance 4.4 ohms @ 300 Hz
Maximum SPL 98 dB (Pair)
Power Handling (RMS) 30 W
Power Handling (RMS) With Amplifier Crossover (150 Hz) 70 W
Recommended Amplifier Requirements 25 – 100 W
Bass Alignment Sealed Enclosure
Crossover Frequency 3.0 kHz
Drive Unit Complement:
1 x 31/2" (89 mm) MMP II Mid-Bass Driver
1 x 3/4" (19 mm) Soft Dome Tweeter
External Dimensions (Including Grille and Terminals (H x W x D) 147 x 122 x 107 mm
Weight (each) 1.12 kg
Sold As Single Unit
1 Unidade de MASS SUBWOOFER
System Format Sealed cabinet, 15 mm MDF construction with 18 mm base and front baffle
Internally braced with sealed amplifier compartment
Lower Frequency Limit -3 dB @ 35 Hz / -10 dB @ 30 Hz (Free Field)
Default preset: Music, -3 dB @ 34 Hz / -10 dB @ 25 Hz (In Room)
Upper Frequency Limit -6 dB @ 150 Hz
Drive Unit Complement 1 x 8" (200 mm) MMP II SUBWOOFER driver featuring a 2" long throw voice coil
Linear Driver Excursion 15 mm Peak to Peak
Amplifier Output 120 W
Amplifier Classification Class D with high current Switch mode power supply (SMPSU)
Phase Control 0 Degrees & 180 Degree pure Invert
Low Pass Filter Alignment 2nd order (12 dB/Octave), from 50 Hz to 150 Hz
Auto Sensing Input Requirements Line Level >3 mV Auto Standby feature after 20 minutes
ÁUDIO Input/Outputs LFE unbalanced input RCA
ESTÉREO unbalanced inputs RCA
Connection 12 V Trigger in (3.5 mm mono mini-jack, 4v threshold)
ELÉCTRICAl Certifications CE / CB/ ETL / Fcc / CCC/ ErP (Energy saving compliant)
Mains Input Voltage 100 – 240 Vac, 50/60 Hz
Power Consumption Maximum 130 W, Standby
Fuse Type 20 mm T8AL 250VAC
External Dimensions (Including Amp, Drivers and Terminals (H x W x D))
340 x 320 x 350 mm
External Dimensions (Including Amp, Drivers, Terminals and Feet (H x W x D))
359 x 320 x 350 mm
Weight (unpacked) 10.2 kg
